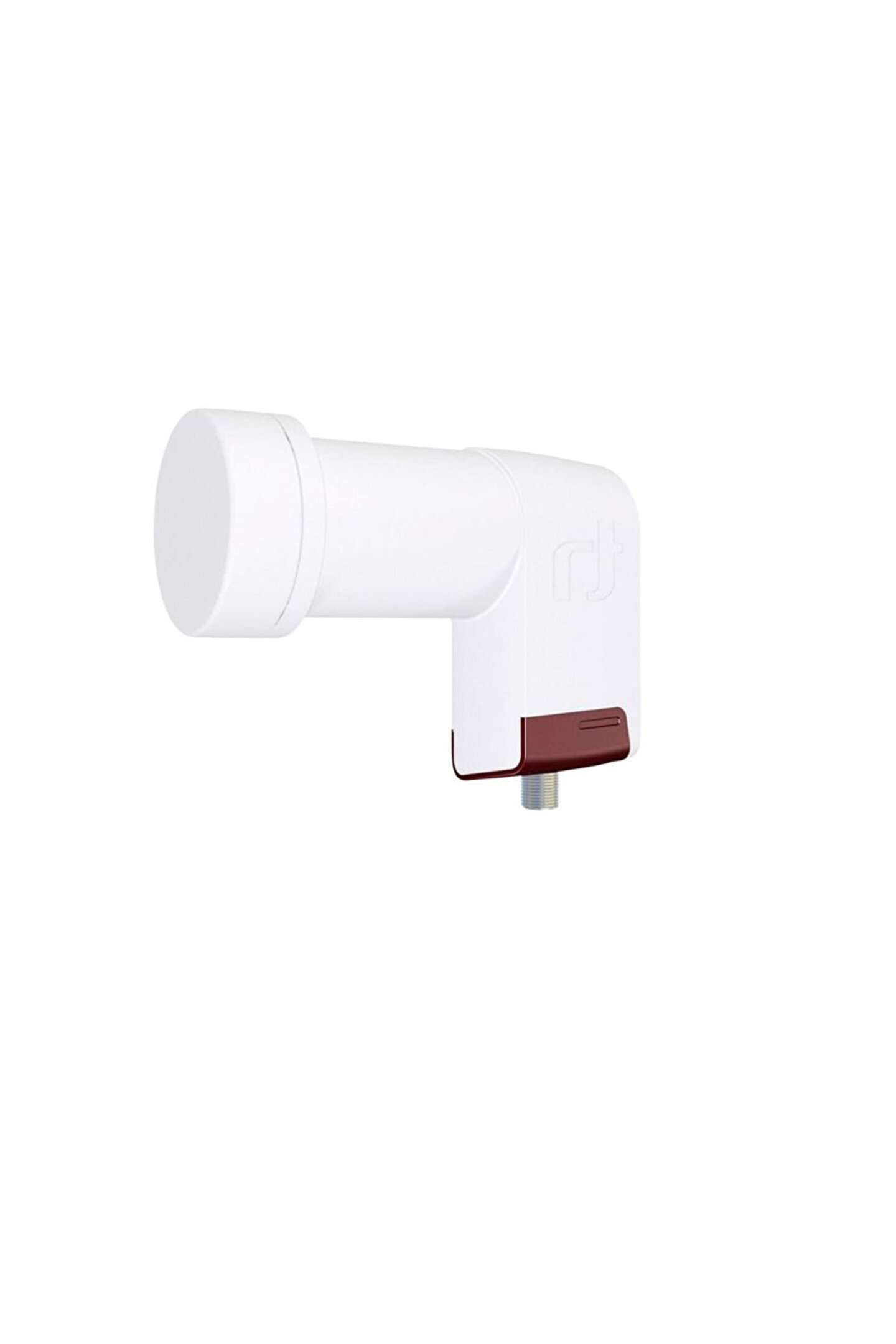

Inverto Inverto Red Extend Single ( Tek Çıkışlı ) Lnb

<div id="rich-content-wrapper"> <div> <strong><span>Inverto Red Extend Single ( Tek Çıkışlı ) LNB</span></strong> </div> <div> <span><strong><span>&nbsp;</span></strong></span> </div> <div> <span><strong><span>Ana Özellikler:</span></strong></span> </div> <div> <span><strong><span>&nbsp;• Çoklu Uydu Tesisatı için Uzun Boyunlu</span></strong></span> </div> <div> <span><strong><span>• Düşük Gürültülü, DVB-S2 (HDTV) uyumlu</span></strong></span> </div> <div> <span><strong><span>• Düşük güç tüketimi</span></strong></span> </div> <div> <span><strong><span>• Yüksek Performans</span></strong></span> </div> <div> <span><strong><span>• Yüksek Frekanslı Stabilite</span></strong></span> </div> <div> &nbsp; </div> <div> <span><strong><span>Teknik Özellikler:</span></strong></span> </div> <div> &nbsp; </div> <div> <span><strong><span>Low Band Input Frequency Range<span> </span>10.7 ~ 11.7 GHz</span></strong></span> </div> <div> <span><strong><span>Low Band Output Frequency Range<span> </span>950 ~ 1950 MHz</span></strong></span> </div> <div> <span><strong><span>Low Band LO Frequency<span> </span>9.75 GHz</span></strong></span> </div> <div> <span><strong><span>High Band Input Frequency Range<span> </span>11.7 ~ 12.75 GHz</span></strong></span> </div> <div> <span><strong><span>High Band Output Frequency Range<span> </span>1100 ~ 2150 MHz</span></strong></span> </div> <div> <span><strong><span>High Band LO Frequency<span> </span>10.6 GHz</span></strong></span> </div> <div> <span><strong><span>Noise Figure<span> </span>0.3 dB Typ. (0.7dB Max.)</span></strong></span> </div> <div> <span><strong><span>LO Initial Accuracy<span> </span>+/- 1.0 MHz Max.</span></strong></span> </div> <div> <span><strong><span>LO Temperature Drift<span> </span>+/- 3.0 MHz Max.</span></strong></span> </div> <div> <span><strong><span>Phase Noise (@ 10 kHz)<span> </span>- 80 dBc / Hz Max.</span></strong></span> </div> <div> <span><strong><span>Conversion Gain<span> </span>55 dB Min.</span></strong></span> </div> <div> <span><strong><span>Gain Ripple (Over 26 MHz Bandwidth)<span> </span>+/- 0.75 dB&nbsp;</span></strong></span> </div> <div> <span><strong><span>Gain Variation (Over Full Band) <span> </span>+/- 4 dB Max.</span></strong></span> </div> <div> <span><strong><span>Image Rejection<span> </span>40 dB Min.</span></strong></span> </div> <div> <span><strong><span>1 dB Compression Point (@ Output)<span> </span>1 dBm Min.</span></strong></span> </div> <div> <span><strong><span>Cross Polarization Isolation<span> </span>22 dB Min.</span></strong></span> </div> <div> <span><strong><span>Control Signal Ca (Vertical Polarization)<span> </span>11.0 ~ 14.0 V</span></strong></span> </div> <div> <span><strong><span>Control Signal Cb (Horizontal Polarization)<span> </span>16.0 ~ 20.0 V</span></strong></span> </div> <div> <span><strong><span>Control Signal Cc (Band Switching)<span> </span>22 +/- 4 kHz</span></strong></span> </div> <div> <span><strong><span>Output VSWR<span> </span>2.5 : 1&nbsp;</span></strong></span> </div> <div> <span><strong><span>In-Band Spurious<span> </span>- 60 dBm Max.</span></strong></span> </div> <div> <span><strong><span>Current Consumption<span> </span>120 mA Max. @ 11 ~ 20V</span></strong></span> </div> <div> <span><strong><span>Operating Temperature<span> </span>- 30 °C ~&nbsp; + 60 °C</span></strong></span> </div> <div> <span><strong><span>Output Impedance<span> </span>75 Ω</span></strong></span> </div> <div> <span><strong><span>Output Connector<span> </span>F-Type (Female)</span></strong></span> </div> <div> <span><strong><span>Weight<span> </span>132 g&nbsp;</span></strong></span> </div> </div>
